zlp series aerial suspended work platform , building lifting cradle , BMU gondola
| Technical Parameters |
| Item | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
| Rated Loading | 250KG | 500KG | 630KG | 800KG | 1000KG |
| Speed | ~9.5 m/min | ~9.5 m/min | ~9.5 m/min | ~8.5m/min | ~8.3m/min |
| Size | L :1m ,2m,2.5,3m; W: 0.69m; H: 1.18m | ||||
| Suspension Mechanism | Rated exerted length of front beam | 1.1m~1.5m | |||
| Terrain clearance of front beam | 1.45m~1.75m | ||||
| Hoist | |||||
| Item | LTD63 | LTD80 a drive | LTD80 s drive | ||
| Voltage | 220v/ 415v/380v 50/60 hzPLATFORM DRAWING 3 phase / single phase | ||||
| Power | 2*1.5kw | 2*1.8/2.0kw | 2*2.2kw | ||
| Speed | 1400 n/min | ||||
| Safety lock | ||
| Item | Anti-proofing LS30 | |
| Angle of tilted locking rope | 3°~8° | |
| Allowable impact force | 30KN | |
| Wire rope | ||
| Type | 4*31SW+FC-φ8.3 | 4*31SW+FC-φ8.6 |
| Control panel | ||
| Brand | CHNT | Schneider |
| Conter weight | ||
| Iron cast | Cement | Hot galvnized steel with concrete |

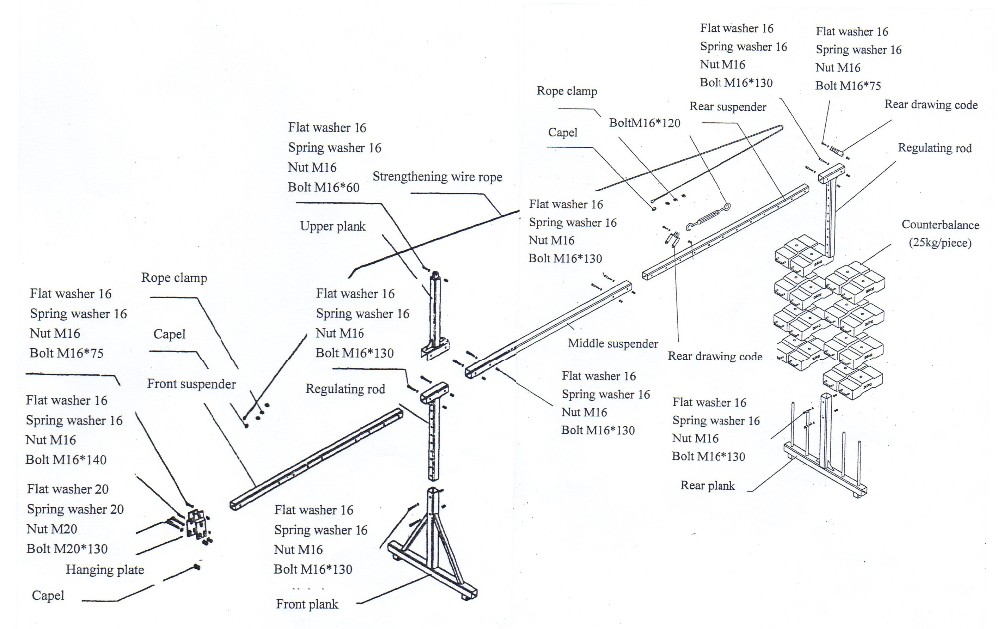

PLATFORM DRAWING
Product show
1.Suspension mechanism &Platform
Surface treatment with hot galvanized craft, the steel is not easy to rust .
The service life can be as long as 15 years , more durable than spraying process.
2.Hoist
With famous brand of motor , large braking torque
Inside gear is 100% copper, the warranty is 5 years.
unique anti-rope clamping device , when rope is clamped ,alarming rings, hoist will stop working , safety is increased, maintenance cost is reduced
Lubrication oil is 220#industry gear oil.Lubrication oil is 220#industry gear oil.
3.Safety lock
The lock cylinder uses special stainless steel , with strong impact resistance, higher
toughness,wear resistant, long services life ,safe and reliable
4.Electric control system
The electric components uses famouse brand CHNT, SCHNEIDER,quality is guaranteed
Perfect circuit design, including leakage protection, current overload protection,emergency braking,operate simply.
5.Wire rope
Our supplier is Jiangsu Fasten Steel Cord Co.,Lt—Chinese famous brand”FASTEN”
6.Cable
Using national standard cable 2.5*3+1.5*2, using life is longer

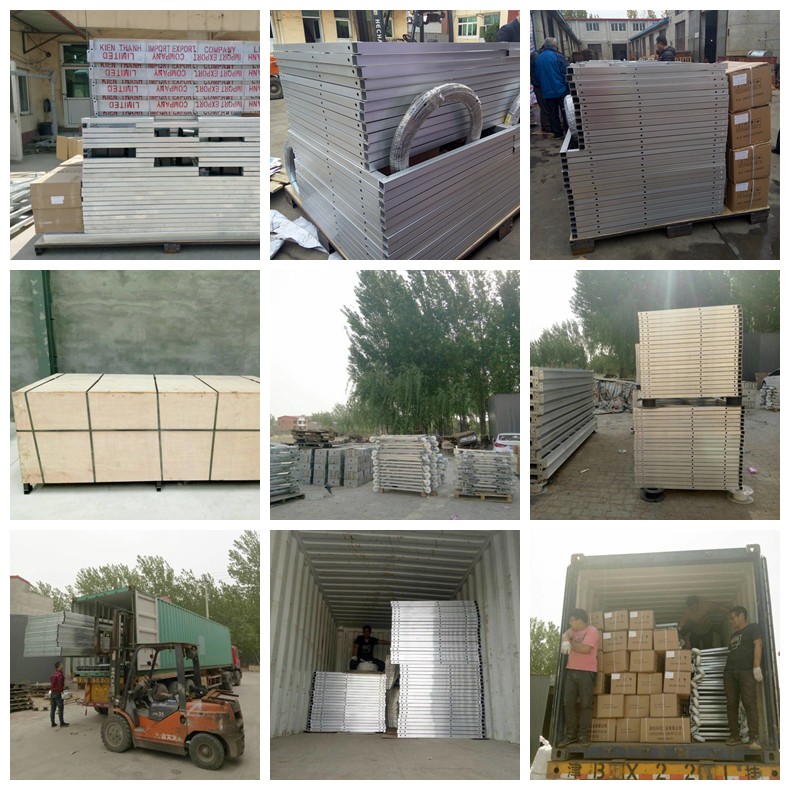

Packaging & Shipping
Hoist and safety lock are packed in one plywood case, size 610*310*340mm;
Control box/ control panel is packed in a plywood case,size 570*440*270mm;
Products will be package by plywood case for LCL
For the whole container , the goods will be packaged by pallet.
One 20′ container can put about 8-10 sets suspended platform
Quick Details
Place of Origin: Shanghai, China (Mainland)
Model Number: ZLP630 / ZLP800
Work platform finished: aluminum alloy , Hot galvanized steel
Size: 3*2000/2500mm*690mm *1180mm
Rated Loading: 630kg 800KG
lifting height: 100m
Hoist: LTD63 LTD80
Voltage: 380v,415v,220v 50/60 Hz
Safety lock: Tilt proofing LS30
Wire rope diameter: 4*31SW-FC-8.3mm
Certification:ISO9000,CE
