steel / aluminum suspended platform cradle , 630kg suspended access equipment
Load 630kg Chinese manufacturer ZLP630 scaffolding powered cradle with best price
ZLP630 Electric Suspended Platform
ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorating,maintaining and cleaning the facade of high-level buildings and exterior construction such as cement coating,veneering,painting,installing the glass curtain walls,painting as well as cleaning and Maintenance. Also can be applied to operating of big vessels and bridges,dams,etc.
Description:

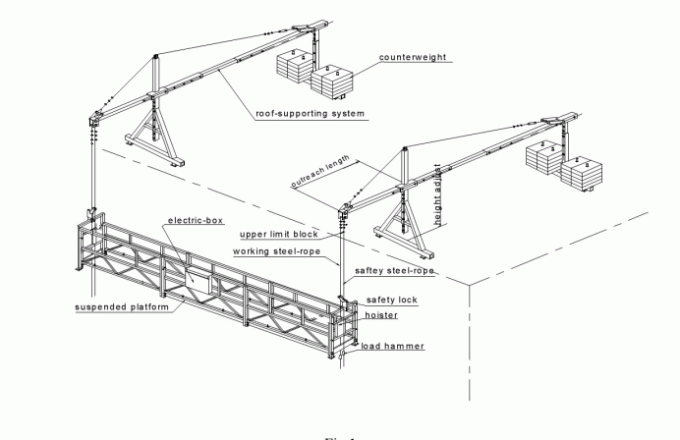

1. Main Components: Platform, Suspension Mechanism, Hoist, Safety Lock, Electrical Control System, Steel Wire Rope, Cable, Safety Lock.
2. Length of Platform: 6M (2M*3SECTIONS) —- can be customized
3. Hoist Power: 208V~440V, 50Hz/60Hz
4. Suspension Mechanism: Painted or Hot Galvanized
5. Safety Lock: LSD30 (2 pcs per set)
6. Electrical Control System: inner parts with brand CHINT or SCHNEIDER
7. Steel Wire Rope: Ф8.6mm; 100mts/piece (totally 4 pieces)
8. Cable: 3*2.5+2*1.5, 100m/roll
9. Safety Rope: 100m/roll
10. Counter Weight: Cement, Cement with Steel Cover, Iron (3 kinds optional)
Technical Sheet
| Property Model No. | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
| Rated load(kg) | 500 | 630 | 800 | 1000 | |
| Lifting speed(m/min) | 9～11 | 9～11 | 8～10 | 8~10 | |
| Motor power(kw) | 2×1.5 50HZ/60HZ | 2×1.5 50HZ/60HZ | 2×1.8 50HZ/60HZ | 2×2.2 50HZ/60HZ | |
| Brake torque(Km) | 16 | 16 | 16 | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | 3°- 8° | 3°- 8° | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | ≤100 | ≤100 | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | 1500 | 1500 | 1500 | |
| Suspending platform | Locking | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Nr.Of platform rack | Single rack | Single rack | Single rack | Single rack | |
| Nr.Of platform | 2 | 3 | 3 | 3 | |
| L×W×H(mm) | (2500×2)×690×1300 | (2000×3)×690×1300 | (2500×3)×690×1300 | (2500×3)×690×1300 | |
| Weight(kg) | 350 Kg | 375 Kg | 410 Kg | 455kg | |
| Suspending mechanism(kg) | 2×175 Kg | 2×175 Kg | 2×175 Kg | 2×175 Kg | |
| Counterweight(kg) optional | 25×30pcs | 25×36pcs | 25×40pcs | 25×44pcs | |
| Diameter of steel rope(mm) | 8.3 | 8.3 | 8.6 / 9.1 | 8.6 / 9.1 | |
| Max Lifting height(m) | 300 | 300 | 300 | 300 | |
| Motor rotation speed(r/min) | 1420 | 1420 | 1420 | 1420 | |
| Voltage(v) 3 PHASES/SINGLE | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | |
Competitive advantages:
1. Absolutely guarantee life safety during Aerial working Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist; Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;Good-quality steel wire rope, safety rope and cable.
2. Stable performance: raise up and lower down smoothly
3. Modular design. Easy to disassemble, assemble operate and maintain.
4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)
5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)
6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)
7. Professional quality, competitive price, fast delivery, good services.
Detailed Product Description
Product Name: Chinese Manufacturer ZLP630 Scaffolding Powered Cradle With Best Price
Standard Length: 6m = 2m * 3 Sections
Voltage: 208V~440V
Surface Treatment: Steel, Hot Galvanized, Aluminum
Rated Load: 630kg
Motor Power: 1.5kw * 2
Material: Steel, Aluminum
Certificates: CE, ISO, EAC
Guarantee: 1 Year
Packing: Pallet, Wooden Case, Carton;container
