Detailed Product Description

Ⅰ.Suspended Platform Identification

Suspended platform is a kind of aerial working equipment for loading people, by setting up suspension frame on the top of building, which is using steel wire rope along building’s vertical surface,and making up and down movement depends on electrical power.

Ⅱ.Main usages of suspended platform

A)For exterior wall construction or decoration for tall building, or installing exterior components.

B) FOR exterior wall maintenance and cleaning.

C) For big project, for instance, construction, inspection and maintenance of big jar, chimney, dam, bridge, well frame.

D) Big vessel’s sealing, cleaning and painting.

E) For installing advertisement board in high place.

Ⅲ.Suspended platform’s type, material and conponents

A. success suspended platforms are mainly divided into:ZLP100,ZLP250, ZLP500, ZLP630, ZLP800, ZLP1000

100,250,500,630,800,1000 mean working load

B. Material:

Platform is divided by surface effect, including Steel,Hot Galvanized,Aluminum alloy.

Steel can be red, black and orange according to client’s requirements.

Hot Galvanized

Aluminum alloy(the bottom and side frames are aluminum alloy, the head is hot galvanized.)

The head of suspended platform refers to the both higher sides.

Suspension frames is divided by surface effect including steel and hot galvanized(There is no aluminum alloy for suspension frames.)

C. Suspended platform structure chart and main components

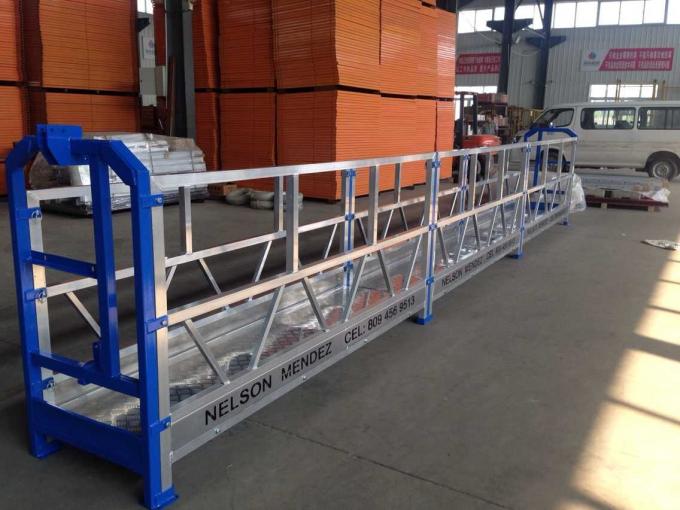

1)Platform

Made up of 1M, 1.5M, 2M, 2.5M, 3M as per clients’requirements, width is 690mm

Advantage:Easy assembly,easy installation, easy removement

A.Front platform 1.08M, back platform1.18M, head of platform 1.4M according to national standard.

B.Head adopted advanced mechanical principle, increasing safety factor and stablizing accuracy between the holes distance

C.Platform surface adopted sand blast and remoting rust and baking finishing technology, or hot galvanized, the bottom is auto slipper- resistance steel board.

We can offer wheels and against-wall support roller, they need extra charged.

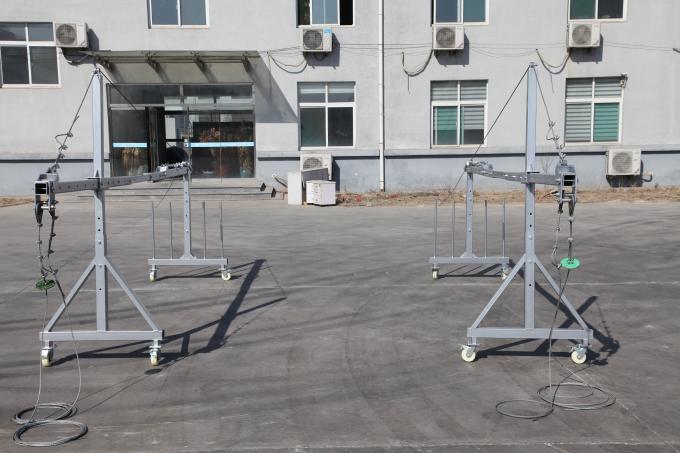

1)Suspension Machanism

Suspension machanism is made up of front beam, middle beam, rear beam, front base, rear base

Reinforcing steel rope, upper column, counter weight, middle beam inserts front and rear beam and can be adjustable.

Front beam length: 2.3M, 4.0MM thickness, 82mm*82mm

Middle beam length 2M, 4.0mm thickness, 70mm*70mm

Rear beam length 2.3M, 4.0mm thickness, 82mm*82mm

Counter weight frame: 1.65M

Suspension hight: 1-1.8M can be adjusted as per clients’requirements

Advantage: easy assembly and torn, save time and labor

Suspension machanism weight (for reference only)

Sand blast suspension machanism: 270KG

Hot galvanized suspension machanism 253.8KG

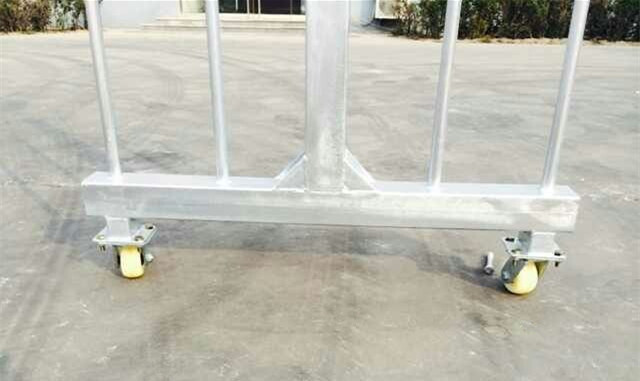

Remarks: The wheel can be equipped on counter weight frame for convenience.

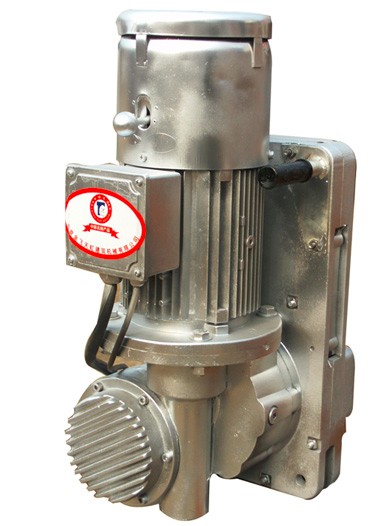

3) Hoist:

Mainly type LTD6.3 and LTD8.0,

Hoist inside components: gear is pure copper, wire winder is aluminum alloy

Remarks: Pls confirm the voltage , we have three phases and double phases voltage,

Weight of hoist is 52-55kg, inside package is carton+film, outside package is wooden case.

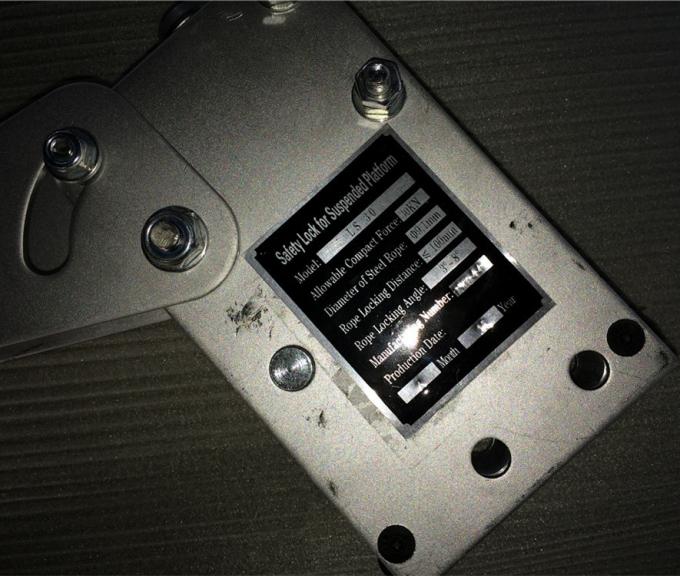

Safe lock

Safe lock is Dacrmet stainless steel, strengthen, once happen vibration, it can be locked immediately, 100% qualified. It can be divided with claw and without claw.

Parameter as follows

The common safe clock weight is 4.5kg/pc(centrifugal safe clock weight is 5.5kg/pc), hoist and safe clock in the same package, safe clock is covered by film to prevent from clash with hoist.

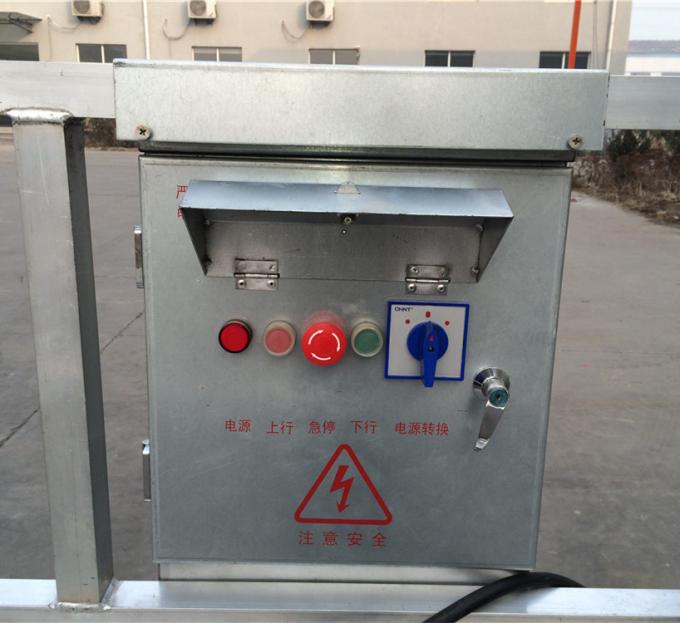

5)Control box

With years of experience and transformation, Haoke control box is highly configured (our products are absolutely no leakage and design science, waterproof, anti impact) with moisture proof, rain prevention and fog prevention measures, 100% of the internal parts are original CHINT (after a long time experiment, and our own patent, our power distribution. The box has light weight, small size, more than three times life, the advantage of low voltage control, inside part 100% CHINT), CHINT 50 transformer, can protect the instability of the current, play a protective role, avoid voltage instability caused by accidents, low voltage to the industry inconvenience. AC contactor is CHINT 18A, overheating protector and other internal components 100% are CHINT’s.

Remarks: the weight of the distribution box is 16.5kg. Some customers require the internal parts of the distribution box to be supplied by Schneider brand, the charge will be borne by clients.

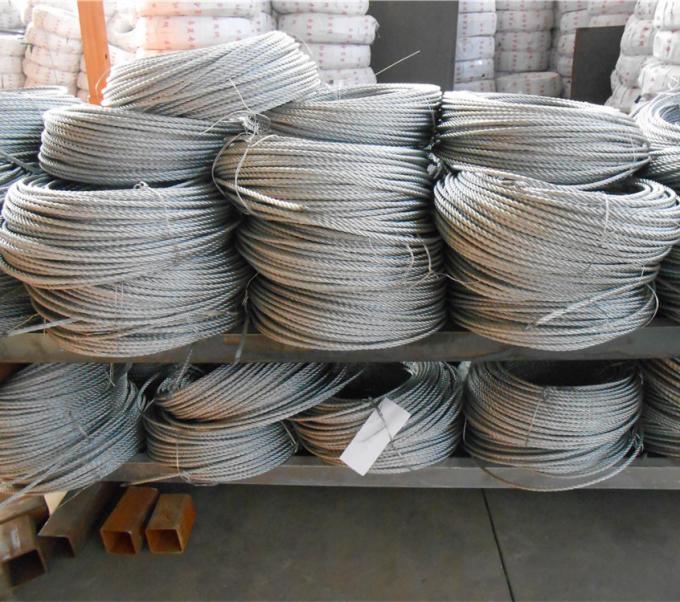

Wire rope

Specifications 4*31SW-8.3, 6 *19W+1WS-8.6, etc., optional diameter such as 8.3mm, 8.6MM, 9.1mm, 9.3mm and so on.

The diameter of the wire rope used in different types of hanging basket is different.

Note: the length of the wire rope is 100 meters / volume. Some customers need other lengths, such as 50 meters, 120 meters, 150 meters and so on. Our company can make it, and the cost should be adjusted flexibly .

The package diagram of the wire rope is shown below. A set of hanging basket is made up of 4 wire ropes, 400 meters in length.

The weight of the wire rope is 25KG/pc, and the 4pcs is 100KG.

Shipping records: 115 meter wire rope size, 70X70X10CM

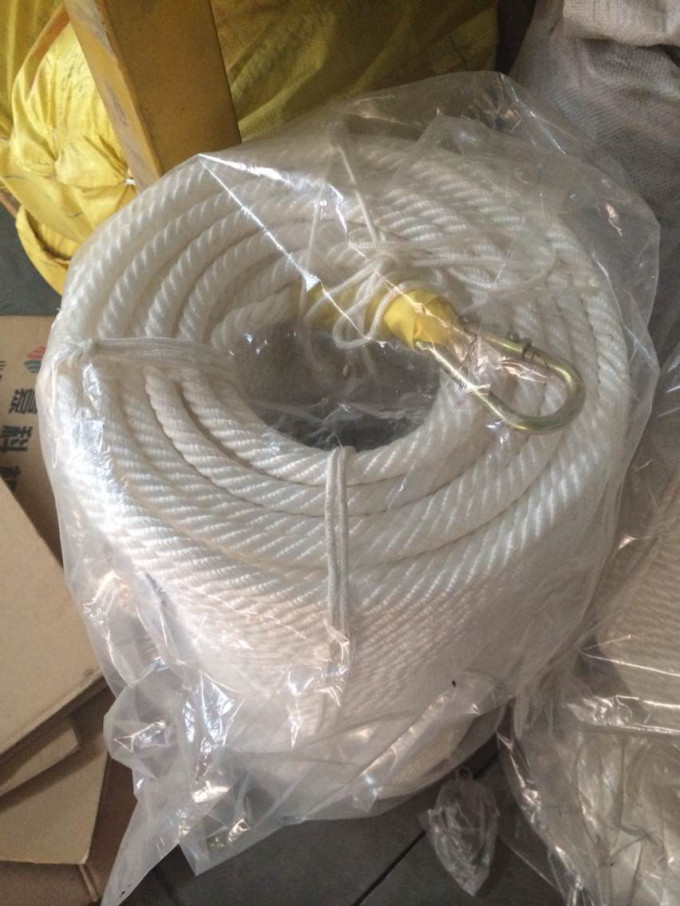

7) Safe rope:

100 meters / root, weight 13kg. We can choose two kinds of all – type and twist – type. The material: polypropylene fiber (high strength line) is the special purpose of the first class ocean ship; the high quality and high strength of 18mm, the large strength, the soft and hard, no release, etc. Breaking pull 47250N GB6095-85.

The delivery package pictures are as follows:

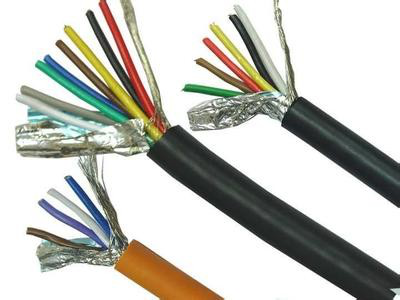

8)Cable

Standard 100 m / roll, weight 18.2kg, length can be customized according to customer requirements, lengthened part of the cost borne by the customer.

Remarks: some customers’ voltage is 220V single phase, and they must be equipped with 6 πr cable. If the voltage is 220V three-phase, it is equipped with 4 πr cable.

Other voltages, such as 380V, 415V, etc., will be matched with 2.5 πr cables.

Ⅲ．Whole set of basket parameters specification table and weight detail:
