ce approved zlp series suspended wire rope platform zlp500, zlp630, zlp800, zlp1000
Descriptions
SUCCESS is one high-tech enterprise engaged in manufacturing,
marketing & technical service of Electrical Suspended Platform, Construction Material Hoist, Construction
Elevator, Tower Crane, B.M.U Gondola, Self-propelled Jack Gantry Lift, and other construction equipment.
SUCCESS pay great qualified by ISO 9001 and our products are CE certified.
Applications:

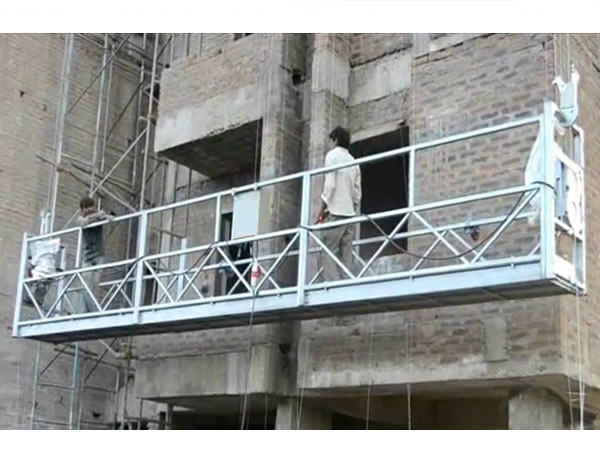

1. Highrise building: Decoration,construction for external wall,installation of curtain wall and external
components,
repairing, checking,maintenance and cleaning for external wall;
2. Large-scale project: construction,repairing and maintenance for large tank, chimney, dams, bridges,
derrick.
3. Large ships: welding, cleaning and painting.
4. billboard: installation billboard for high-rise building.
Technical Parameters
| Model | ZLP 500 | ZLP630 | ZLP800 | ZLP1000 |
| Appearance | Painting / Hot galvanized | |||
| Fabrication material | Steel/ Aluminum alloy | |||
| Rated load | 500 kg | 630kg | 800kg | 1000kg |
| Lifting speed | 9~11m/min | 9~11m/min | 8~10m/min | 8~10m/min |
| Motor power | 2×1.5kw | 2×1.5kw | 2×1.8kw | 2×2.2kw |
| Brake torque | 16 km | 16 km | 16 km | 16 km |
| Steel rope angle adjusting range | 3°~8° | 3°~8° | 3°~8° | 3°~8° |
| Distance between two steel rope | ≤ 100mm | ≤ 100mm | ≤ 100mm | ≤ 100mm |
| Counterweight (optional) | 25kg×30pcs | 25kg×36pcs | 25kg×40pcs | 25kg×44pcs |
| Diameter of steel rope | 8.3mm | 8.3mm | 8.6/9.1mm | 9.1mm |
| Max Lifting height(m) | 300m | 300m | 300m | 300m |
| Motor rotation speed | 1420 r/min | 1420 r/min | 1420 r/min | 1420 r/min |
| Voltage (3PHASES) (optional) | 220V/380V/415V 50Hz/60Hz | |||
Detailed Product Description
Color: Yellow, Orange, Red, Silver (can Be Customized)
Rated Load: 500kg,630kg,800kg,1000kg
Size Of Platform: 5000/6000/7500mm X 690mm X 1300mm
Brake Torque: 16
Diameter Of Steel Rope: 8.3mm / 8.6mm
Motor Power: 2 X 1.5kw/1.8kw /2.2kw
Voltage: 220V/380V/415V, 50/60HZ
Counter Weight: Concrete, Concrete With Steel Cover, Iron-casting
Main Parts:
1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)
2. Suspension Mechanism: Steel (painted or hot galvanized)
3. Electric hoists:LTD6.3, LTD8.0, LTD10.0
4. Safety Lock: LS30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm
7. Safety rope: 18mm,20mm
8. Electric cable: 3*2.5+2*1.5
9. Counterweights: Cement, cement with steel cover & Iron casting counterweight
10. Wheels both under suspension mechanism & platform available;
11. Platform: We can meet your requirements on different length, such as 2m,3m,4m,6m,7.5m….12m
maximum.
12. Lifting height: 300m maximum.
